Sample Problem 14

The 30-kg block is supported by two springs having the stiffness shown. Determine the unstretched length of each spring after the block is removed.




Here's the Solution:

Sample Problem 13

Knowing that P=100 lb, determine the tension in cables AC and BC.











Here's the Solution:

Sample Problem 12

A Load W is supported by three cables as shown. Determine the value of W, knowing that the tension BD is 390 lb.

Sample Problem 11

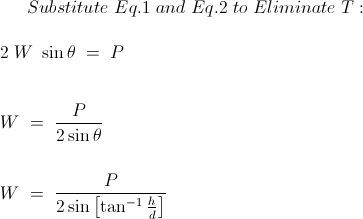

Express the weight W required to maintain equilibrium in terms of P, d, & h.

Sample Problem 10

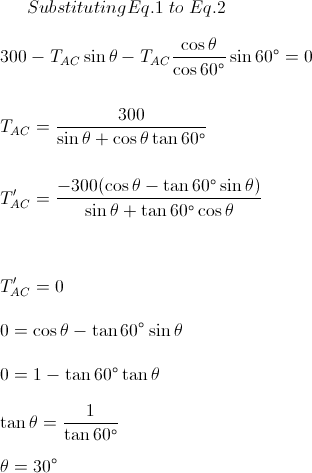

A 300 lb force is applied at point C for what values of θ is the tension in cable AC minimum? What are the corresponding values of the tension in cables AC and BC?

Here's the Solution:

Sample Problem 9

The collar A may slide freely on the horizontal smooth rod. The spring attached to the collar has a constant of 10 lb/in, and is undeformed when the collar is directly below support B. Determine the magnitude of the force P required to maintain equilibrium when c= 9 inch.





Here's the Solution:

Sample Problem 8

Two cables are tied together at C and loaded as shown. Determine the tension in AC and BC.








Here's the Solution:

Sample Problem 7

The direction of the 300 N force may vary, but the angle between the forces is always 40º. Determine the value of θ for which the resultant of the forces acting at A is directed parallel to the plane .

Here's the Solution:

Sample Problem 6

Two cables which have known tensions are attached at point B. A third cable AB is used as a guy wire and is also attached at B. Determine the required tension in AB so that the resultant of the forces exerted by the three cables will be vertical.



Here's the Solution:

Sample Problem 5

A collar which may slide on a vertical rod is subjected for the three forces shown. The direction of the force F may be varied. If possible determine the direction of the force F so that the resultant of the three forces is horizontal knowing that the magnitude of F is a) 480 lb and b) 280 lb.











Here's the Solution:
